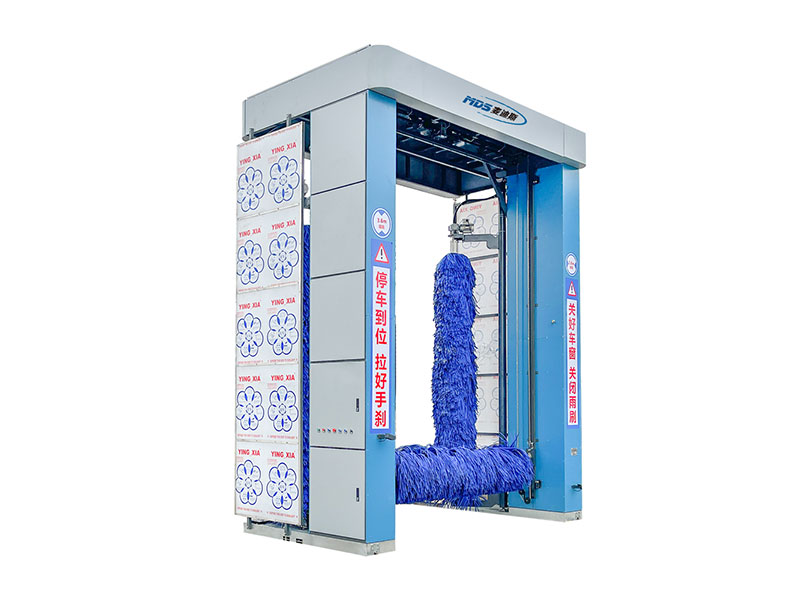

Reciprocating Large Vehicle Washer

Madis Reciprocating Large Vehicle Washer is a professional cleaning equipment customized for large vehicles such as buses, coaches, sanitation trucks and engineering vehicles. It effectively solves industry difficulties including bulky vehicle size, stubborn dirt and difficult cleaning, and is widely applied in bus depots, sanitation fleets, passenger terminals and industrial parks.

Medis Reciprocating Large Vehicle Washer is a professional cleaning equipment customized for large vehicles such as buses, coaches, sanitation trucks and engineering vehicles. It effectively solves industry difficulties including bulky vehicle size, stubborn dirt and difficult cleaning, and is widely applied in bus depots, sanitation fleets, passenger terminals and industrial parks.

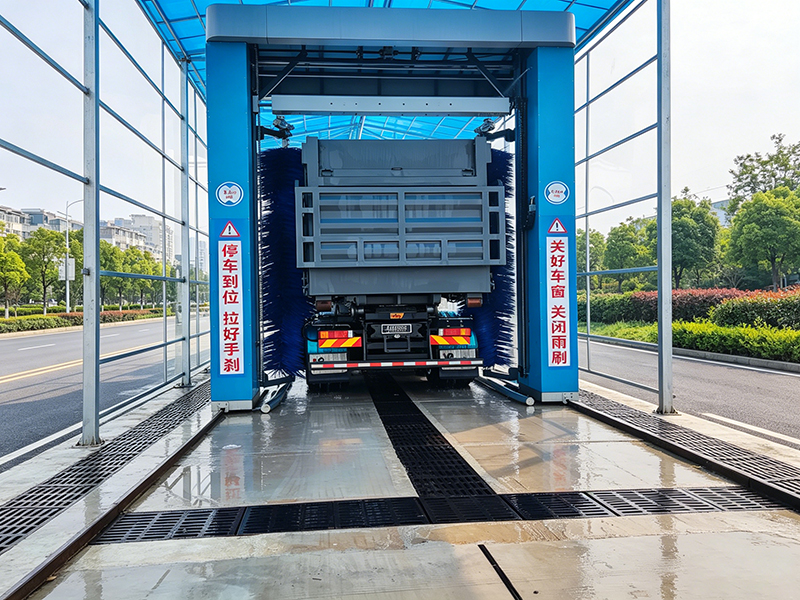

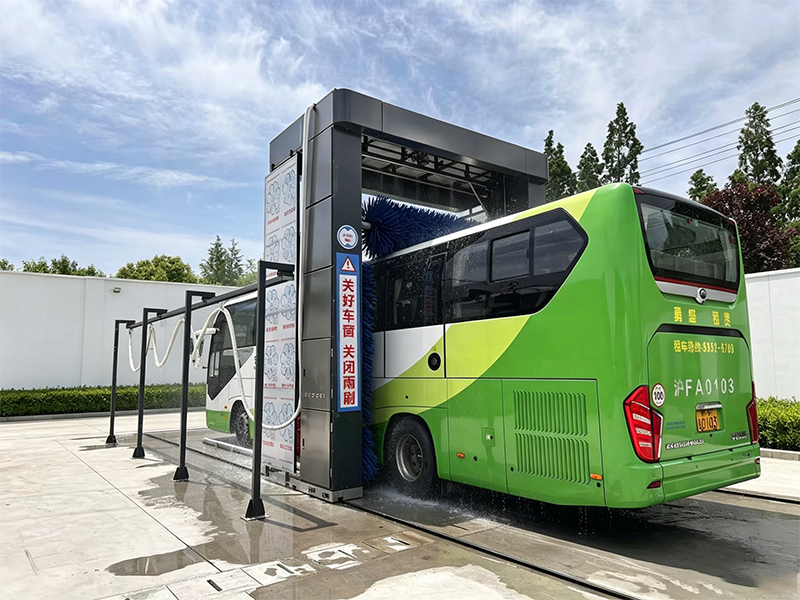

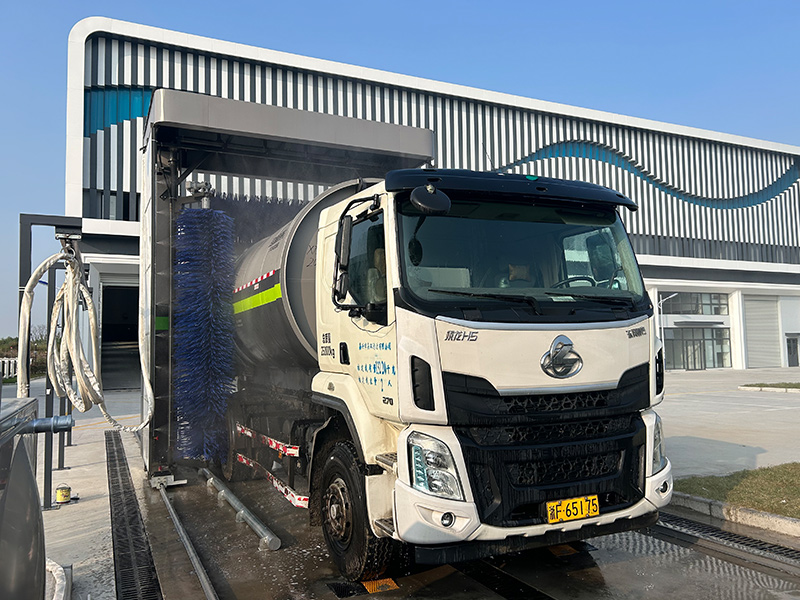

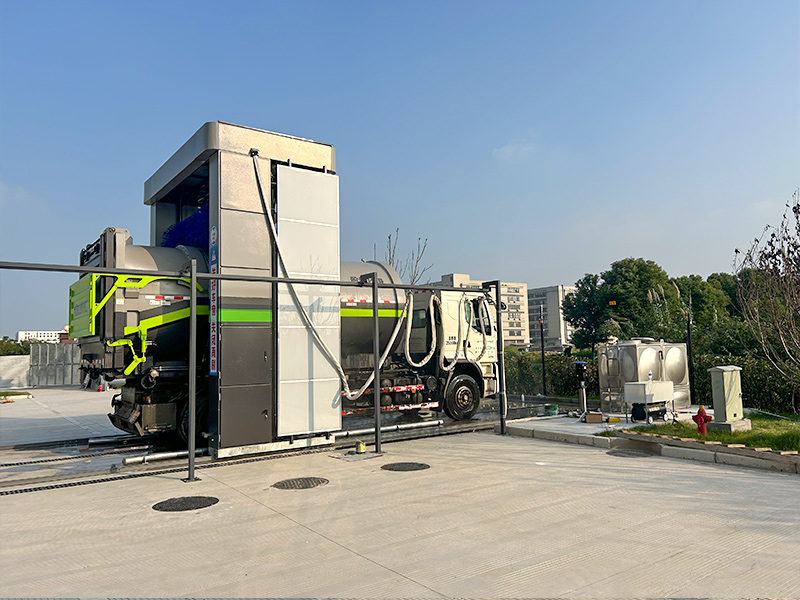

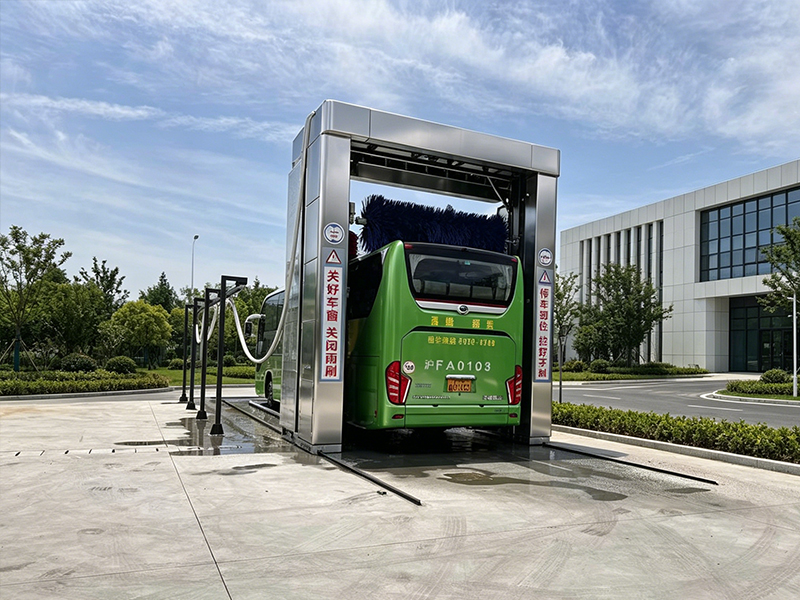

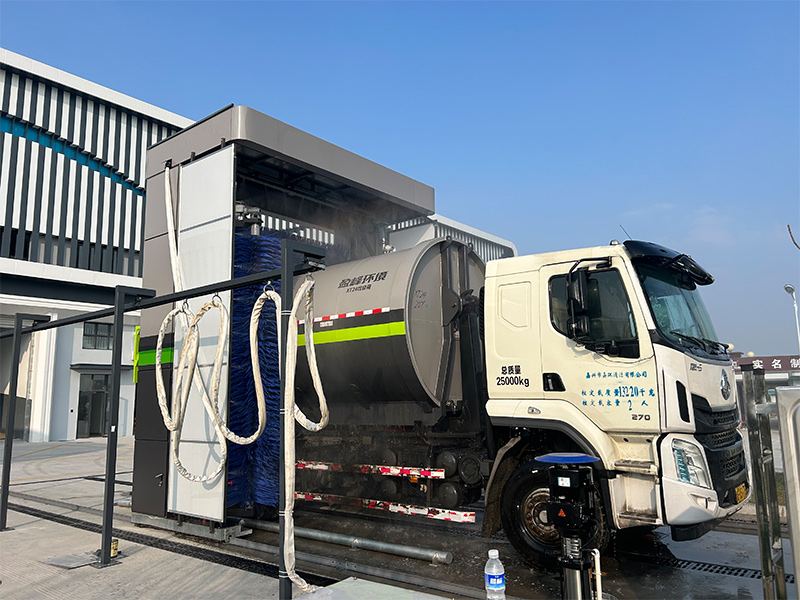

Adopting the working mode of fixed vehicles and reciprocating moving equipment, it differs from traditional washing modes, featuring better site adaptability and higher operational safety.

Equipped with multiple sets of high-density flexible brushes, the machine moves back and forth at a constant speed to clean vehicle bodies, roofs, wheels and corners without dead zones. The wear-resistant soft brushes thoroughly remove dust, mud and oil stains while protecting car paint, signs and accessories from scratches. Equipped with high-pressure spraying system, it softens heavy dirt first to achieve superior cleaning performance.

Supported by automatic intelligent control system, the whole washing process can be finished with one click. No manual close operation is required, greatly reducing labor intensity and costs. Featuring sturdy structure, wind and shock resistance and high durability, the equipment supports all-day frequent operation and delivers much higher efficiency than manual cleaning.

Compact in size and easy to install, it suits renovation and construction of various depots. With reliable performance, comprehensive cleaning capacity and low maintenance cost, it serves as the ideal choice for vehicle cleaning of government fleets, sanitation departments and passenger transport enterprises.

Parameter Item Specific Specification
Equipment Dimensions (m) Length 2.5 × Width 4.5 × Height 5.5
Installation Dimensions (m) Length 18 × Width 6.5 × Height 5.7 (including safety maintenance space on both sides)
Washing Dimensions (m) Length ≤ Unlimited × Width ≤ 3 × Height ≤ 4 (suitable for various buses and public transport vehicles)
Power Requirement 380V/50HZ Three-phase Five-wire System, rated current 20A
Washing Speed 3min—5min/vehicle (washing duration can be fine-tuned according to the degree of dirt)
Water Consumption 150L-200L/vehicle (equipped with water circulation filtration system, single filtration precision 50μm, water saving rate 40%)
Equipment Power Total power 10KW (including 4KW washing pump, 3KW brush electric motor, 1.5KW traveling motor)
Compressed Air Pressure 0.8Mpa, external air compressor required (recommended air displacement ≥ 0.3m³/min)
Power Consumption 0.5KWh/vehicle (no-load standby power ≤ 100W)
Control System Programmable Logic Controller (PLC), equipped with 7-inch color touch screen, supporting parameter storage (10 groups of vehicle model parameters storable) and fault code display
Washing Method Ground rail type; the equipment moves back and forth along the rails for cleaning; the vehicle remains stationary without needing to be driven, and is equipped with wheel positioners to assist in vehicle parking
Manufacturing Material Main frame: Hot-dip galvanized steel plate (thickness 5mm) + spray coating/baking paint treatment (protection class IP65); vulnerable parts: Stainless steel material (rust and corrosion resistant)

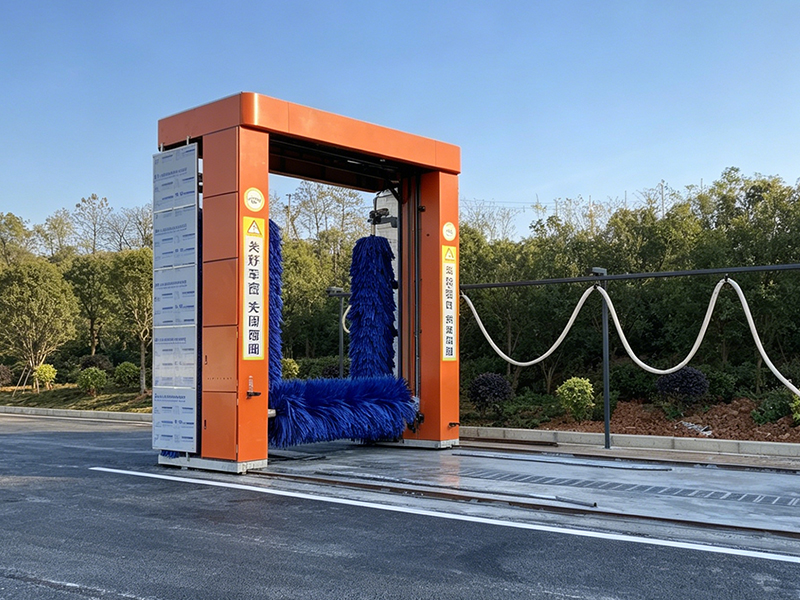

Brush Configuration 1 top brush (height-adjustable), 2 side brushes (telescopic, covering blind areas on the vehicle body side)
Brush Material EVA Foam brush
Washing Process Automatic pre-rinsing → touchless car wash detergent spraying → brush reciprocating cleaning → high-pressure water secondary rinsing(full-process automation)
Sensing System Infrared correlation sensing + ultrasonic ranging, automatically identifying the vehicle body contour to avoid collision between the equipment and the vehicle body
Safety Devices Emergency stop buttons (1 at the front and 1 at the rear of the equipment), overload protection, leakage protection, rail limit switches, automatic shutdown when brush pressure is overloaded
Applicable Vehicles City buses, tourist buses, intercity coaches, school buses (excluding extra-wide/extra-high specially modified vehicles)
Equipment Weight (kg) Approximately 3200
Operating Environment Temperature 0℃~45℃ (antifreeze filling port optional for low-temperature environments)
Customization Service Supports adjusting equipment height, number of brushes and rail length according to the cleaning target (e.g., double-decker buses, extended buses)
