Tunnel Bus Car Wash Machine

Medis tunnel-type large vehicle washer is professional cleaning equipment tailored for buses, coaches, sanitation trucks and engineering vehicles. It is widely used in bus depots, sanitation fleets, passenger terminals and industrial parks, effectively solving the problems of heavy cleaning workload and low efficiency of large vehicles.

Medis tunnel-type large vehicle washer is professional cleaning equipment tailored for buses, coaches, sanitation trucks and engineering vehicles. It is widely used in bus depots, sanitation fleets, passenger terminals and industrial parks, effectively solving the problems of heavy cleaning workload and low efficiency of large vehicles.

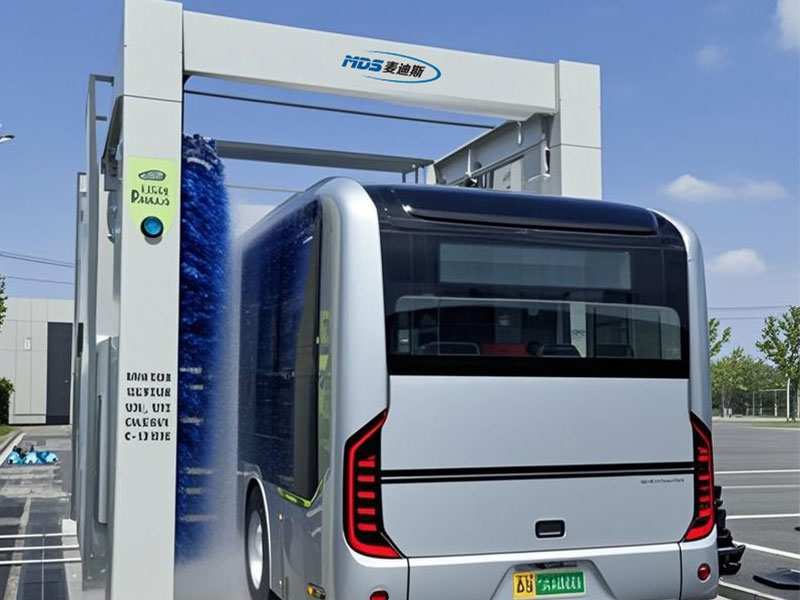

The equipment keeps stationary while vehicles pass through at a constant speed, featuring smoother procedures and higher working efficiency. As vehicles drive steadily into the washing tunnel, multiple sets of high-strength flexible brushes rotate synchronously to comprehensively clean car bodies, roofs, sides and wheel gaps without blind spots, thoroughly removing mud, oil, dust and stubborn road dirt.

Adopting flexible wear-resistant brushes, the machine delivers powerful decontamination performance without scratching vehicle paint, logos and external parts. Equipped with front high-pressure spraying system, it softens heavy dirt in advance for better cleaning effect.

Fitted with intelligent sensor control system, the device automatically identifies vehicles and starts operation. The whole process runs automatically without manual supervision. With solid and corrosion-resistant structure, it supports frequent all-day operation, greatly boosting cleaning efficiency and cutting labor costs.

Featuring compact occupation, easy installation and convenient maintenance, the equipment suits new and renovated yards. With high efficiency and wide vehicle compatibility, it is a preferred cleaning solution for sanitation departments, passenger transport enterprises and industrial fleets.

Parameters / Series Tunnel Type 4 Brushes Tunnel Type 6 Brushes
Equipment Dimensions (m) Length 8 × Width 5 × Height 5.3 Length 12 × Width 4 × Height 5.3
Installation Dimensions (m) Length 10 × Width 6 × Height 6 Length 14 × Width 6 × Height 6
Washing Dimensions (m) Length ≤ Variable × Width ≤ 2.6 × Height ≤ 4.2 Length ≤ Variable × Width ≤ 2.6 × Height ≤ 4.2

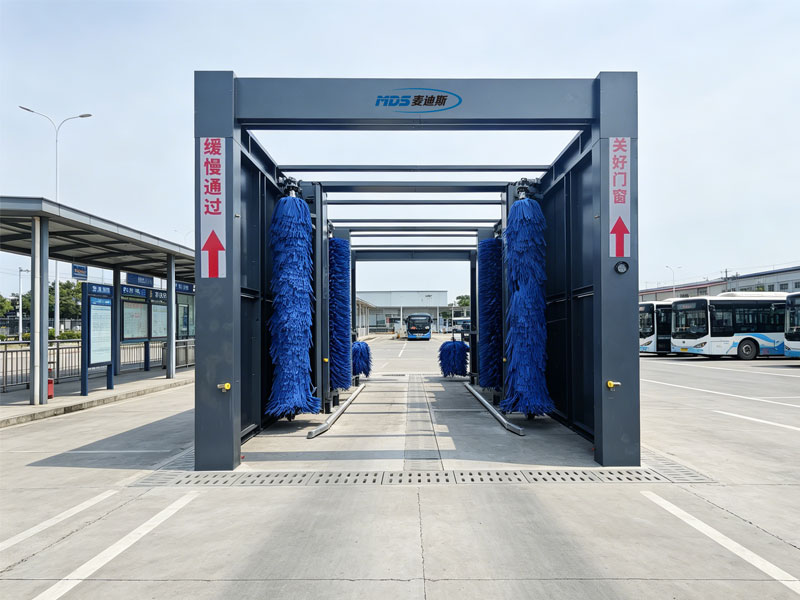

Brush Configuration 1 top brush + 2 side brushes + 1 skirt brush 1 top brush + 4 side brushes + 1 skirt brush
Installed Power (kW) 11 12
Washing Duration (minutes/vehicle) 1.5 – 2 2 – 3
Equipment Weight (kg) 3800 5200
Power Consumption (kWh/vehicle) 0.6 0.8
Water Consumption 150L—200L/vehicle
Washing Method High-pressure water rinsing, brush scrubbing
Operation Method Automatic control, manual control
Installed Voltage 380V 50Hz
Air Pressure 0.7Mpa
Control System PLC programmable control + touch screen operation
Safety Protection Infrared anti-collision + emergency stop button + pressure sensing protection
Applicable Vehicles Buses, coach buses, large trucks, sanitation trucks
