For small and medium-sized car wash stations seeking high cost-effectiveness, quick return on investment, and limited site conditions, MDS is the perfect solution. As a popular entry-level tunnel car wash system on the market, it innovatively adopts left-side single-rail traction technology: the vehicle only needs to be put into neutral, and a dedicated rail on the left side of the tunnel clamps the left front wheel, smoothly pulling the vehicle through the washing area at a constant speed.
This design retains the core advantages of tunnel car washes—continuous operation and high efficiency (20-30 vehicles per hour)—while significantly simplifying the mechanical structure and reducing equipment costs as well as civil engineering and installation expenses. Equipped with 7-9 sets of flexible foam brushes, an intelligent photoelectric sensing system, and a powerful drying module, the single-track version still delivers excellent cleaning results, with the cost per vehicle as low as 1.3-1.5 yuan.
Deep Analysis of the Six Core Values

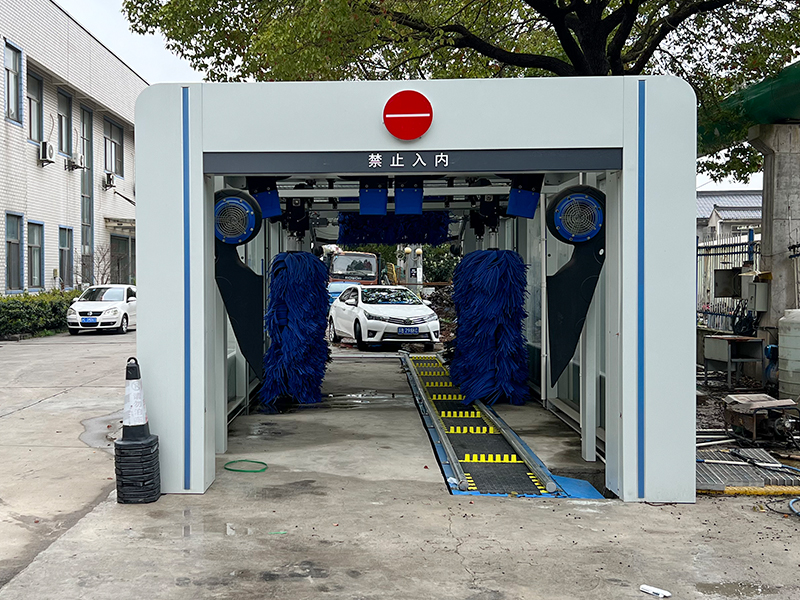

Left-Side Single-Rail Traction Technology — Simple Yet Sophisticated, An Economical and Practical Choice

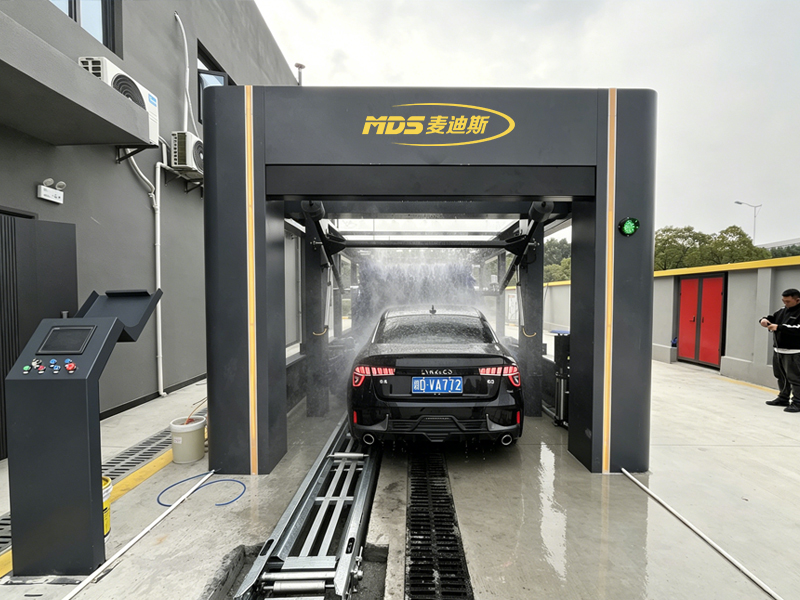

- Unique Principle: Distinct from the “dual-side fixation” of double-rail systems, this equipment features a high-strength guide rail positioned on the left side inside the tunnel. Once the vehicle enters and is shifted into neutral (N gear), a left-side guide directs the left front wheel into the rail clamping zone, where the single-rail system drags the wheel to propel the entire vehicle forward.
- Core Advantages:
- Low Cost: By reducing the amount of rail steel and drive motors by half, the equipment procurement cost is significantly lowered, resulting in a shorter return on investment period.
- Easy Installation: Requires only a single-side trench or surface-mounted rail, minimizing civil engineering work and demanding less site width, making it especially suitable for retrofit stations.
- Easy Operation: Vehicle owners do not need to engage the handbrake or perform complex securing procedures; simply shifting into neutral is sufficient, ensuring a smooth and natural user experience.
Flexible Brush Configuration (7-9 Brushes Optional) — Customized on Demand for Precise Cleaning
- Modular Design: The combination of 7, or 9 brushes can be flexibly configured according to budget and requirements.
- Standard Configuration: 1 contouring top brush + 2-4 large vertical brushes + 2-4 skirt brushes.
- Full-Coverage Cleaning: The top brush intelligently conforms to the roofline, the vertical brushes spirally envelop the vehicle body, and the skirt brushes specifically target the wheels and side skirts, ensuring thorough, dead-angle-free cleaning.
- Premium Brush Material: The entire series comes standard with imported high-density foam bristles, which are wear-resistant and paint-safe. Even under the slight dynamics of single-rail traction, they maintain close conformity to the vehicle’s curves through a sensitive oscillating compensation mechanism.
Intelligent Photoelectric Sensing & Variable Frequency Control — Smart Car Washing, Energy Efficient & High Performance
- Vehicle Identification: The photoelectric sensing array at the entrance automatically detects vehicle height and length, intelligently adjusting the top brush’s vertical position and the vertical brushes’ swing amplitude to prevent collisions and ensure no spots are missed during cleaning.
- Variable Frequency Speed Control: Travel speed is adjustable between 0.8-1.5m/min.
- Daily Mode: Balances efficiency and quality, processing 20-25 vehicles per hour.
- Sprint Mode: Increases speed during peak traffic hours to maximize throughput.
- PLC Central Control: A simplified PLC control system paired with an intuitive operation panel enables one-touch startup, self-diagnostics for faults, and easy maintenance, lowering operational barriers.
Powerful Drying & Water-Saving Eco-Friendliness — Green Operation, Drive Away Immediately After Washing
- Efficient Drying: Equipped with 2-4 sets of high-pressure fans at the rear (optional based on configuration), forming a cross-flow air wall to effectively blow away water from body crevices. Achieves 85%-90% dryness, meeting the “drive-away immediately” needs of most car owners.
- Ultimate Cost Savings:
- Ultra-Low Cost: Thanks to the simplified mechanical structure, energy consumption is further reduced, resulting in a comprehensive cost of approximately 1.3-1.5 RMB per vehicle.
- Water Recycling System: Standard equipped with sediment filtration and water recycling devices, consuming 130-160L of water per vehicle, achieving over 30% water saving rate, and complying with environmental regulations.
Multi-Layer Safety Protection — Peace of Mind Operation, Worry-Free Guarding
- Safety mechanism: Despite the simplified structure, safety standards remain unchanged. Equipped with infrared anti-collision sensors (stop upon obstruction), motor overload protection, and emergency stop button.
- Durable Design: The main frame is constructed from hot-dip galvanized steel for anti-corrosion and rust prevention. It adapts to standard environments of 0-45℃, and key components are selected from industrial-grade brands to ensure long-term stable operation.
Recommended Application Scenarios
- Medium to Small Gas Stations: Limited space, moderate budget, requiring rapid growth in non-fuel revenue.
- Community/Property Parking Lots: Serving surrounding residents, utilizing idle open space to provide convenient car wash services.
- Startup Car Washes: Limited capital, aiming to enter the automated car wash market at the lowest cost and quickly validate the business model.
- Pre-wash for Auto Detailing Shops: Serves as a rapid decontamination stage prior to manual detailing, increasing bay turnover rates.
Single-Track vs. Dual-Track: How to Choose?
| Key Considerations | Single-Rail | Dual-Rail |
|---|---|---|
| Budget / Capital | Tight budget, focusing on maximizing value and achieving a quick payback period. | Sufficient capital, pursuing premium quality and long-term brand image. |
| Site Conditions | Narrow site, difficult civil renovation, hoping for simple installation. | Spacious site, acceptable to undertake major civil engineering and high-standard requirements. |
| Traffic Flow | Daily average of 350+ vehicles, moderate operational load. | Daily average of 400+ vehicles, requiring extremely high stability and continuous operation capability. |
| Vehicle Type Complexity | Mainly standard sedans and urban SUVs. | Mainly standard sedans and urban SUVs. |
| Stability Requirements | Accepts slight dynamic washing process (entirely within safe limits). | Requires an absolutely static washing environment, with zero tolerance for movement. |
