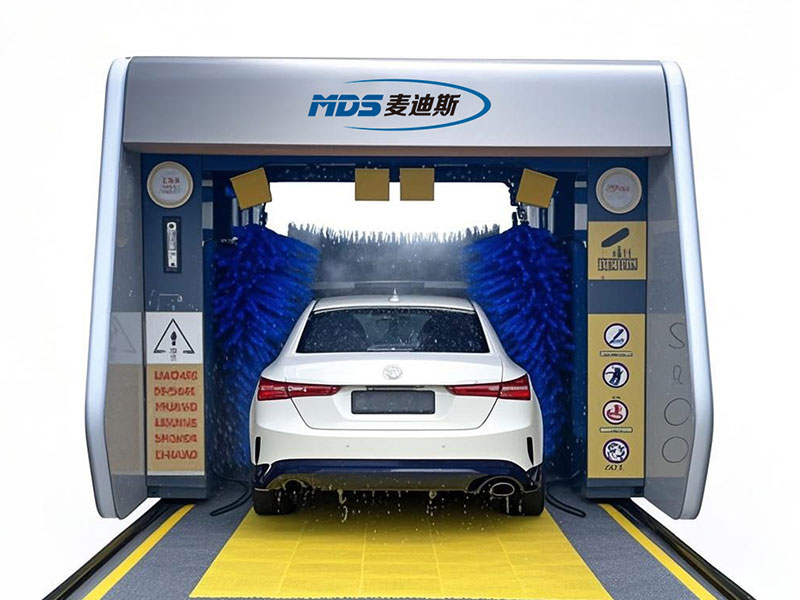

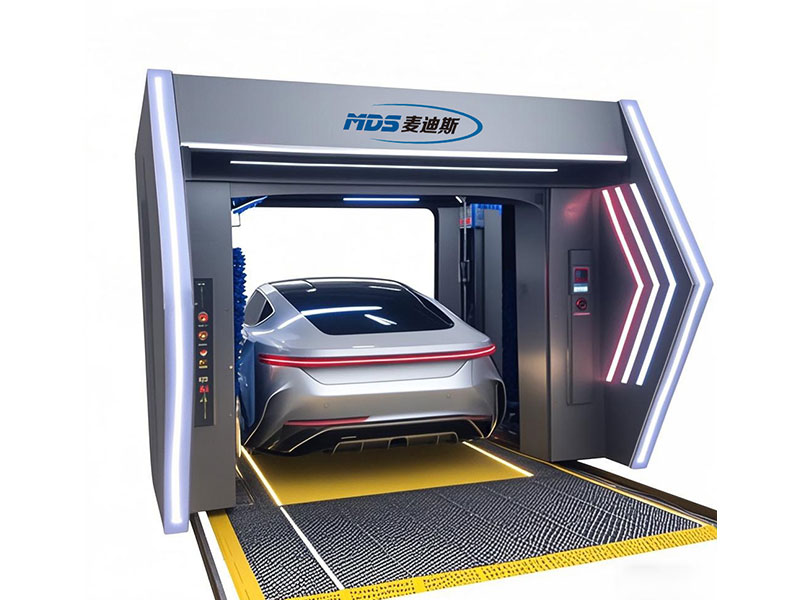

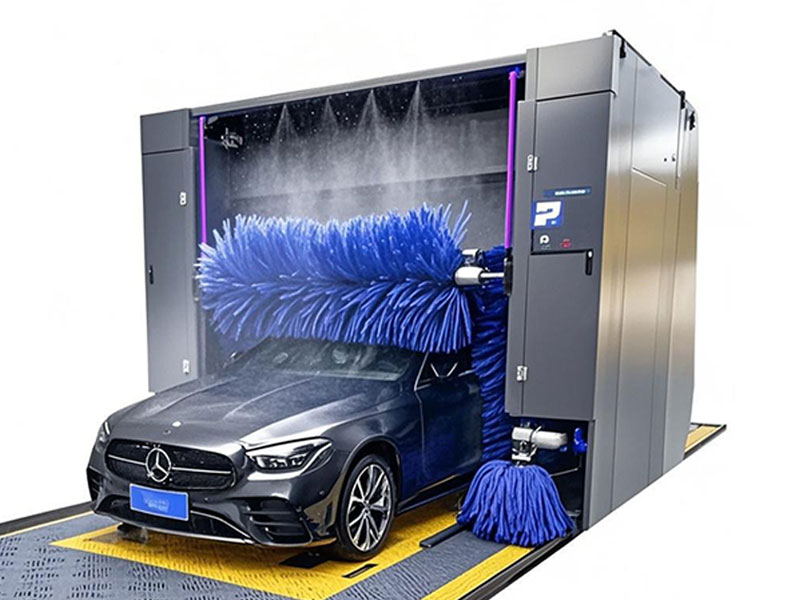

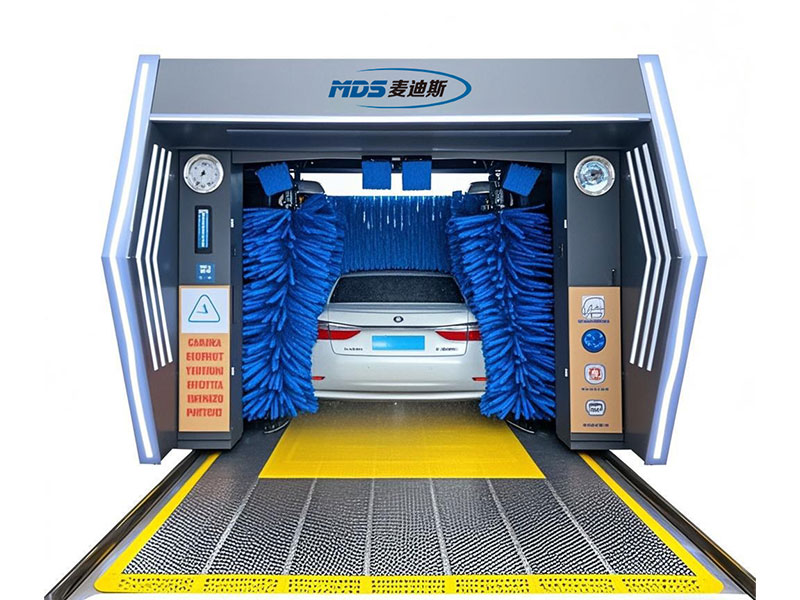

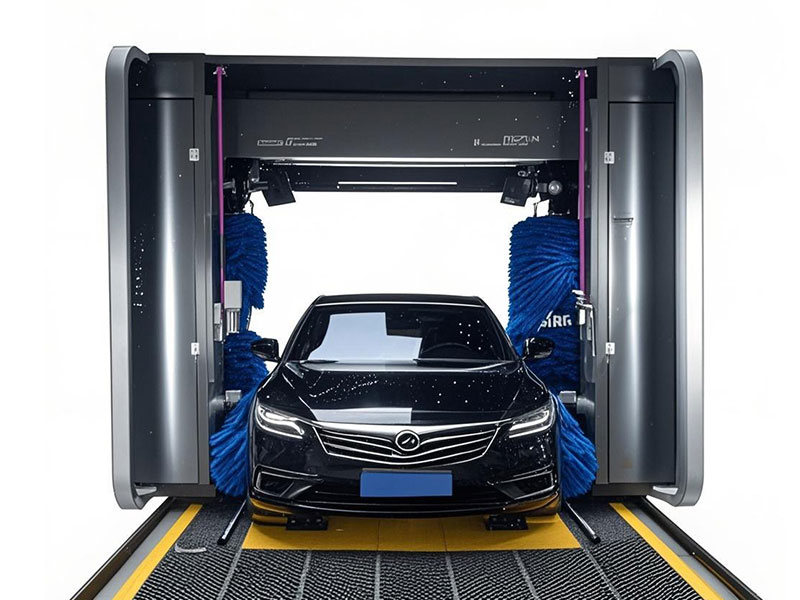

The automatic unattended car wash machine is a high-end intelligent device that seamlessly integrates exquisite mechanical manufacturing with smart Internet of Things (IoT) technology. The system integrates full-chain automation features such as QR code payment, automatic reset, vehicle dimension recognition, and fault self-diagnosis, supporting 24/7 all-weather fully automatic operation. Car owners only need to scan a QR code with their mobile phones to independently and safely complete the entire “wash, care, and dry” process. Operators do not need to be on-site and can perform digital remote management through the cloud platform. This is a modern, large-scale commercial car wash solution that balances excellent cleaning experiences with low-cost operations.
- 24/7 Unattended Intelligent Operation
- Description: Integrates scan-to-pay and automatic reset systems, supporting remote monitoring of equipment status and earnings via mobile phone. No manual attendance is required, drastically reducing labor costs by 90%.
- Multi-Mode Precision Washing
- Description: Offers three modes: 160s (Express), 230s (Standard), and 280s (Deep). The PLC system automatically detects vehicle dimensions to dynamically adjust water pressure and brush travel.
- Full-Process Safety Protection
- Description: Employs a dual anti-collision system of “mechanical limits + electronic sensors” (millisecond-level shutdown), combined with an infrared light curtain for real-time monitoring and complete electrical protection.
- High Efficiency & Low Consumption Green Operation
- Description: Equipped with a multi-stage sediment filtration water recycling system, water consumption per car is only about 180 liters (1/3 of manual washing). Combined water and electricity costs are controlled at around 1.5 RMB/car, maximizing profit margins.
- Industrial-Grade Heavy-Duty Durable Design
- Description: The main frame features a 3mm hot-dip galvanized steel plate (reinforced to 8mm at stress points), equipped with industrial-grade brushes and motors resistant to extreme climates from -20°C to 50°C.
- 3D Stereo Powerful Air-Drying
- Description: Features 6 high-power blowers arranged in a 3D layout (4 top fans and 2 side fans) for comprehensive airflow coverage, precisely drying detailed gaps to achieve a car body dryness of over 95%.
- Biomimetic Composite Soft Brush Technology
- Description: Imported PE + foaming composite soft bristles paired with a unique spiral winding process tightly fit the vehicle contours, ensuring zero paint damage and no swirl marks.
- High-Pressure Chassis Wash System
- Description: Embedded high-pressure fan-shaped nozzles automatically wash the undercarriage as the vehicle moves, powerfully removing mud, road salt, and oil stains for effective rust prevention.
- Big Data Cloud Operation & Maintenance Platform
- Description: Automatically records washing data to assist in building membership marketing systems. Real-time cloud push of fault codes supports remote diagnosis and OTA firmware upgrades.
- Multi-Functional Wash-and-Care Spray
- Description: Supports spraying crystal wax and coating agents to form a water-repellent protective film on the paint, boosting gloss; can be paired with dedicated wheel spray guns to remove hub dust.
- Brush Self-Cleaning System
- Description: Automatically initiates a self-cleaning cycle after each wash, using fresh water to rinse the brushes. This avoids secondary paint scratches caused by residual grit and extends brush lifespan by over 30%.
- User-Friendly Interactive Guide
- Description: High-definition LED screen and voice prompts guide drivers step-by-step to park, shift to neutral, and fold side mirrors; equipped with dynamic LED ambient light strips to attract attention at night.
