Heavy-duty Engineering Car Washer

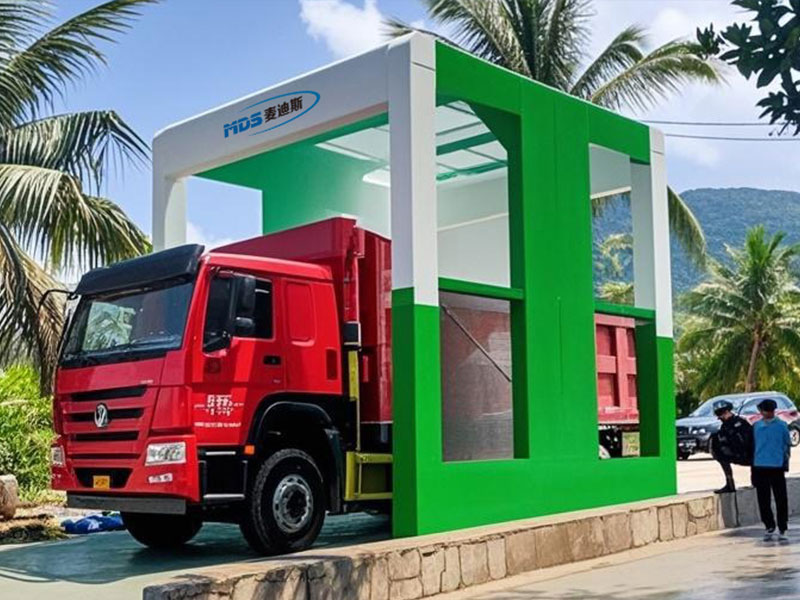

Medis heavy-duty engineering vehicle washer is a brushless high-pressure flushing cleaning equipment developed for harsh industrial environments. It is widely used in construction sites, coal mines, steel plants and commercial concrete stations. As one of the most customized models, it perfectly meets diverse cleaning demands of complex working scenarios.

Medis heavy-duty engineering vehicle washer is a brushless high-pressure flushing cleaning equipment developed for harsh industrial environments. It is widely used in construction sites, coal mines, steel plants and commercial concrete stations. As one of the most customized models, it perfectly meets diverse cleaning demands of complex working scenarios.

With fixed equipment structure, the whole cleaning process is completed when vehicles pass through at a constant speed. Adopting brush-free design, the machine is equipped with side spraying and undercarriage flushing systems. Multi-angle nozzles thoroughly remove mud, dust, concrete dirt and stubborn contaminants from vehicle chassis, tires and car sides without cleaning dead angles.

Featuring outstanding compatibility, the equipment suits irregular heavy engineering vehicles, as well as regular large vehicles such as coaches and sanitation trucks. The non-contact washing mode protects vehicle bodies and spare parts, applicable for modified and special operation vehicles.

Made of thickened steel materials, the robust body resists corrosion and impact, supporting long-term high-intensity continuous operation under severe dusty and heavily polluted conditions. Equipped with intelligent induction control system, the washer automatically starts and stops working with vehicle access, requiring no manual operation and greatly improving cleaning efficiency.

The equipment supports full personalized customization. Dimensions, water pressure, nozzle arrangement and operating parameters can be adjusted according to site space, vehicle size and pollution degree. It can also be matched with sewage treatment facilities. Easy maintenance, low failure rate and long service life make it an ideal cleaning facility for enterprises to meet environmental protection standards.

Item Configuration Parameters
Equipment Dimensions 22.5m * 5m * 5m (Length * Width * Height)
Load-Bearing Capacity Designed load-bearing ≥ 120 tons, capable of withstanding repeated rolling
Car Washing Efficiency & Water Consumption Car washing efficiency: 40-60 seconds/vehicle (adjustable time); Water consumption: Approximately 260-300L/vehicle
Steel Structure Main Body Q235B steel columns, steel beams, component connecting plates, reinforced sheet metal parts, national standard rectangular tubes
Coating Requirements Sheet metal parts are made of galvanized carbon steel, with anti-rust spray coating treatment
Washing Method Traveling-type cleaning
Nozzle Type & Quantity ≥ 150 nozzles
Bottom Flushing Side Panels 3 groups of nozzles for horizontal bottom flushing device
Side Flushing Side panel flushing height: 3m; Focused cleaning height: Below 1.4m
Operation Control Touch screen, enabling manual, fully automatic, and remote control (adjustable cleaning and water control time)
Water Pumps 3 units of 15KW high-pressure centrifugal pumps + 3 units of 5.5KW booster submersible pumps
Sensors Adopting through-beam dual-beam infrared sensors, with sensitive response and anti-misoperation
Operation Panel Touch screen (independent control for manual, automatic, water pumps, and fans)
Air-Drying Fans 4 units of 5.5KW fans
Control Cabinet 1 unit of industrial outdoor control cabinet
Speed Bumps 16 pieces of cast steel material (≥250mm300mm50mm)
Detection System 1 set of flow meters and pressure sensors
Speed Limit Prompt 5km speed limit warning sign
Safety Signs Standard configuration
Total Power 90KW
